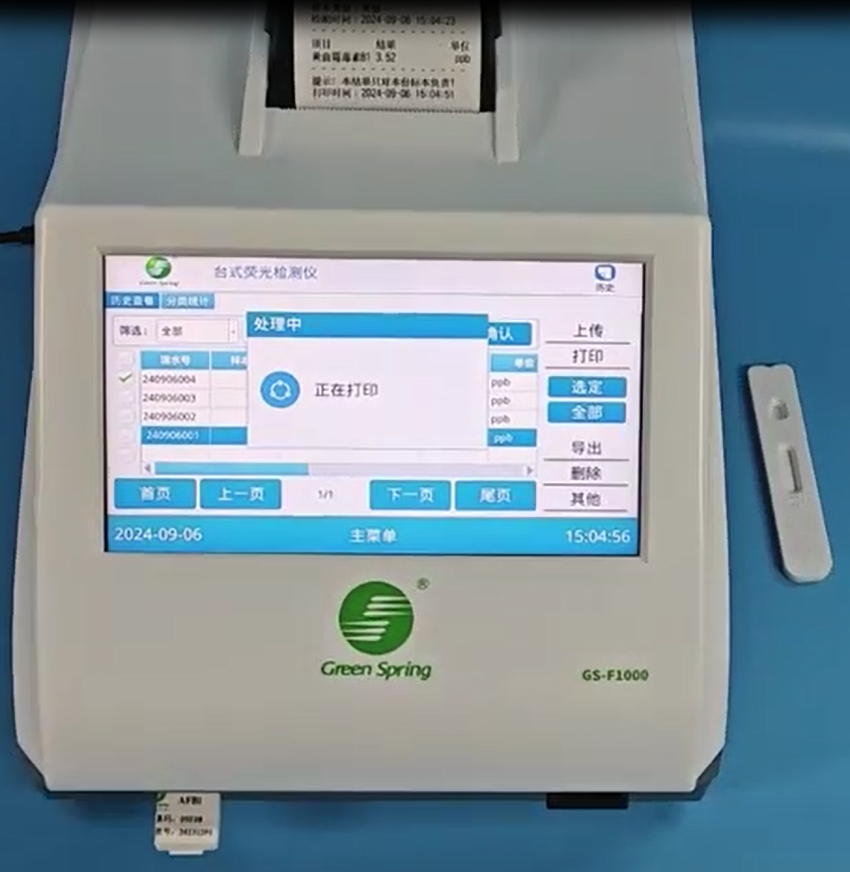

GS-F1000 Desktop Fluorescence Immunoassay Analyzer

Scope of application

Used in conjunction with adapted specific dry reagents based on fluorescence immunochromatography in the field of food safety testing.

 Products Technical features

Main parameters

◆       Software Information:

Version name: GS-F1000

Software release version: V 1

Full version of the software: V 1.3.27.9

Running environment: Linux operating system

Hardware Configuration: CPU-Processor 880MHz and above; Memory-128MB and above; Flash memory-128MB and above;

◆       Excitation light source: LED or diode laser;

◆       Instrument interface: 1、USB interface

                           2、Ethernet interface

                           3、Dual serial port serial port 1: LIS system automatically uploads

                              Serial port 2: Connection to PC reagent debugging

◆       Display: 24-bit true color LCD.

◆       Power supply parameters: mainframe input - 24V

                              Adapter input – 100-240VAC, 50/60Hz;

◆       Input power: 60VA

◆       Standard Curve:

           Storage: standard 4K capacity ID card, up to 10 standard curves stored

           Fitting methods: 4 as standard (linear fitting, segmented polynomial fitting, MMF four-parameter growth model fitting, SPLINE cubic spline fitting)

◆       Application operation: one step operation ---- after power on the test card carrier automatically extends, the user inserts the reactive test card into the carrier, no need to carry out other operations, the machine automatically recognizes the test card, automatically completes the test and automatically uploads the test results to the LIS system, prints the report form, and the waste card is thrown out from the side of the machine.

 Main performance

◆       Repeatability: CV ≤ 10%

◆       Stability: σ≤±8

◆       Linear correlation: r≥0.97

◆       Accuracy: Δn≤±15%

The period of use is 5 years (note: human damage is excluded).
